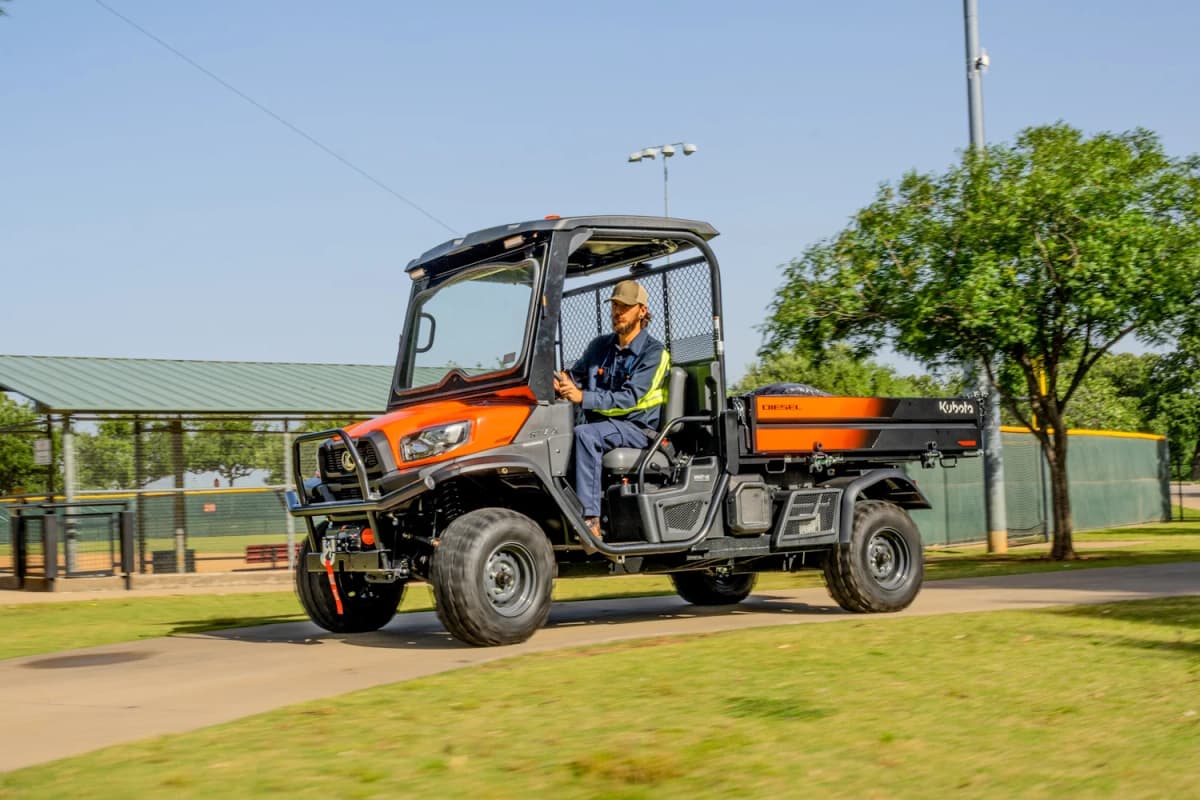

RTV-X LONG BED
FULL-SIZE DIESEL UTILITY VEHICLES
Call for Pricing
Special Offers
2.99% A.P.R. for up to 36 Months on your new RTV-X/RTV-X1130/RTV-X1140/RTV-X1100C/RTV-X CAB/RTV-X CREW!
RTV-X SERIES
Experience the next level of productivity with the Kubota RTV-X LONG BED. Powered by Kubota’s rugged 23.3 HP diesel engine and equipped with a VHT-X transmission, the RTV-X LONG BED delivers exceptional torque, control, and reliability for a full day’s work. The LONG BED features a durable 6-foot metal cargo bed with standard ProKonvert™—allowing you to fold down or remove the side panels without tools for unmatched versatility and productivity.
Introducing the new 1-row RTV-X LONG BED:
Tough and Dependable. Power Your Productivity. Capability Reimagined.
North America’s #1-Selling Diesel UTV*
*Based on Power Products Marketing North American 2024 sales data for the Pure Utility Vehicle (PUV) segment.

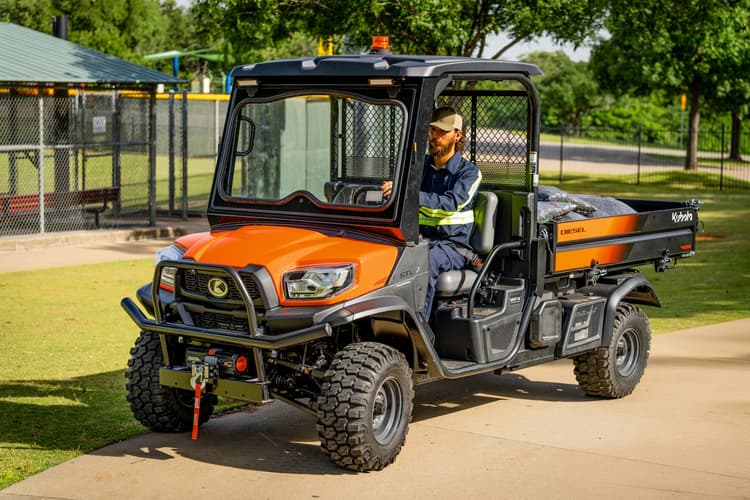

Comfort And Convenience
LED Meter Panel, Strong high-rigidity frame, Extra Duty Independent suspension, tilt steering, Low/High LED headlights, HDMP tires*
*on select trims
Hydraulic Reliability and Convenience
Hydraulic Power That Works as Hard as You Do
- Hydraulic bed lift handles up to 1,212 lbs—effortlessly
- Powered steering for smooth, precise control
- Supports hydraulic implements like snow blades and sweepers
- Keeps you productive across any terrain or task
Built to move more, steer better, and do more—all day long
ProKonvert™ Cargo Bed
RTV-X LONG BED: Built for Bigger Jobs
Experience unmatched utility with the RTV-X LONG BED, designed for larger loads and maximum versatility.
6' Steel Cargo Bed with ProKonvert™ system. Side-load access from both sides. Tool-free panel removal for flatbed conversion and built-in slots for easy load separation. All these features make the LONG BED ideal for hauling more—faster and easier.

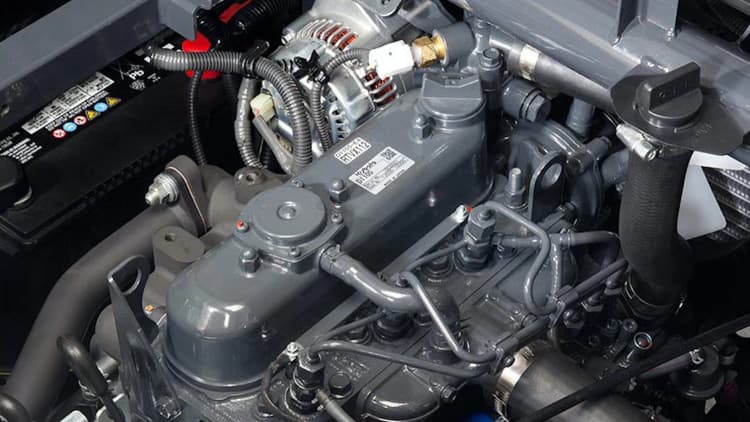

Power to Work
Fuel your workday with the dependable performance of the 23.3 HP Kubota 3-cylinder liquid-cooled diesel engine—engineered for efficiency and built to last.

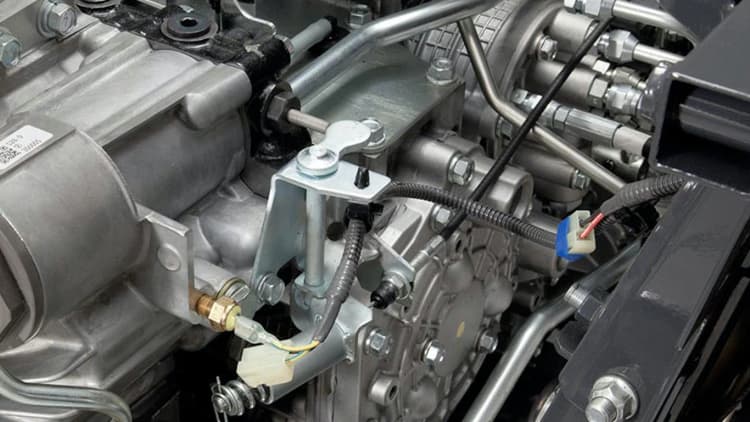

Kubota Durable Transmission
Kubota X-Series RTVs are equipped with VHT-X transmissions, delivering superior performance and reliability. Key benefits include:
- Smooth, gear-free operation for easy driving
- Strong engine braking for safe downhill control
- Reliable power delivery for towing and hauling
- Durable, low-maintenance design
- Excellent traction in tough terrain and conditions

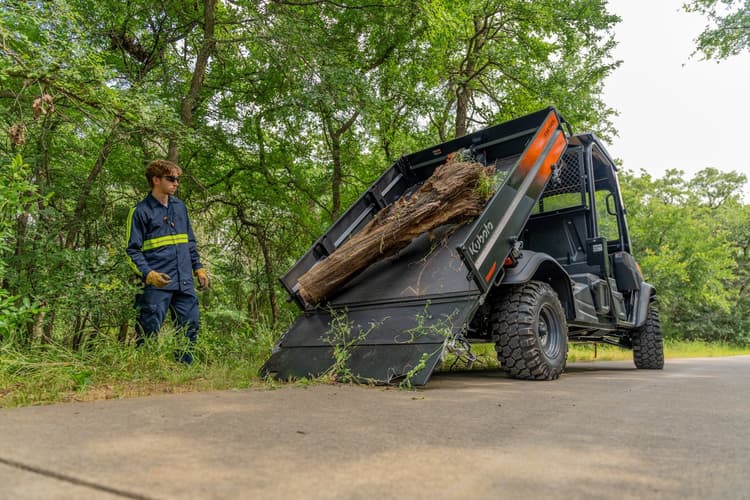

Do more with the exclusive cargo bed accessories
The RTV-X LONG BED is designed to get more work done with less time. Engineered with exclusive cargo box accessories like a cargo winch, tailgate extender for easier loading, LED cargo lights, and cargo storage boxes to store tools.
Specs & Compare
Compare models.
RTV-X LONG BED
HP
Call for Pricing
Specifications
Cargo Bed Load lbs. (kg)
Differential Lock
Displacement cu. in. (cc)
Drive System
Engine Type
Fuel Tank Capacity US gal (L)
Height, Overall in. (mm)
Horsepower HP (kW) /rpm
Length in. (mm)
Max. Traveling Speed mph (km/h)
Towing Capacity Ibs. (kg)
Transmission / Transmission Type
Width in. (mm)
Cargo Bed Load lbs. (kg)
1212 (550)
Differential Lock
Front: Limited-slip / Back: Foot operated
Displacement cu. in. (cc)
68.5 (1123)
Drive System
4WD Standard
Engine Type
Kubota D1105 Diesel Engine
Fuel Tank Capacity US gal (L)
7.9 (30)
Height, Overall in. (mm)
79.7 (2025)
Horsepower HP (kW) /rpm
23.3
Length in. (mm)
154.5 (3925)
Max. Traveling Speed mph (km/h)
25 (40)
Towing Capacity Ibs. (kg)
1300 (590)
Transmission / Transmission Type
Variable Hydro Transmission (VHT-X)
Width in. (mm)
63.2 (1605)
